MARINZ | M R Z

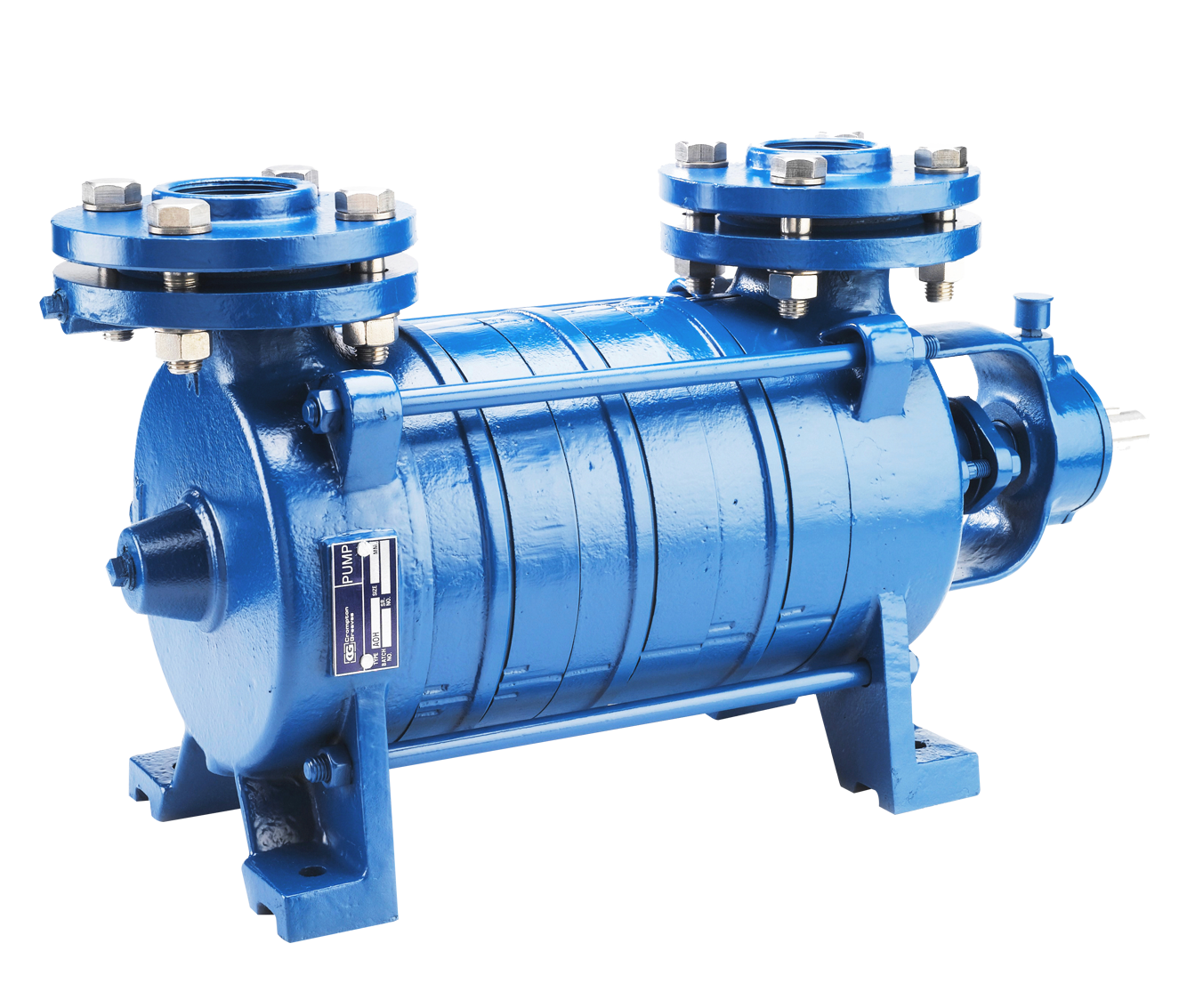

Monoflo Marinz is a range of side channel pumps developed for various needs of liquid handling. They are  horizontal, segmental multistage type construction, with open vane wheel 'star' type impeller. It is designed for relatively low flow, high head, thin liquid and liquefied gas transfer.
Several features of Marinz characterised this unique pump. Mainly,

  • Self-priming capability.
  • Capability to handle gas-entrained liquid (that does not contain any solid matters or abrasives admixtures); hence eliminating possible air or vapor locked that can occur in other pump design.
  • Ability to handle liquids near to boiling point.

applications.

GENERAL

General water transfer; pressure supply booster systems; water feature applications

INDUSTRIAL

General transfer of liquid (distillate, fuel oil, light lubricants, hydrocarbons, etc); hot & cold water circulations; pumping condensate & boiler feed; machine cooling; process water and other manufacturing processes.

MARINE & SHIPBUILDING

General water supply and pressure boosting.

AgriculturAL

Horticultural irrigation & sprinkler systems; watering & drainage.

operating limits.

Liquid handled

Clean water; gas-entrained liquid; or slightly aggressive liquid (compatible to pump construction material), that do not contain any solid matters or abrasives admixture.

Working pressure

Up to 12 bars (12 kg/cm2)

Flowrate

0.5 to 20m3/hr (500 to 20,000 LPH).

Discharge pressure

6 to 115 metres (0.6 to 11.5 bar)

Operating temperature

From 0oC to 100oC

Operating speed

Nominal operating speed up to 1,500 r.p.m. at 50Hz. (up to 1,800 r.p.m. at 60Hz)

Viscosity

0.3 to 230 mPas

Gas Content

Up to 50%

Gas Content

Up to 50%
