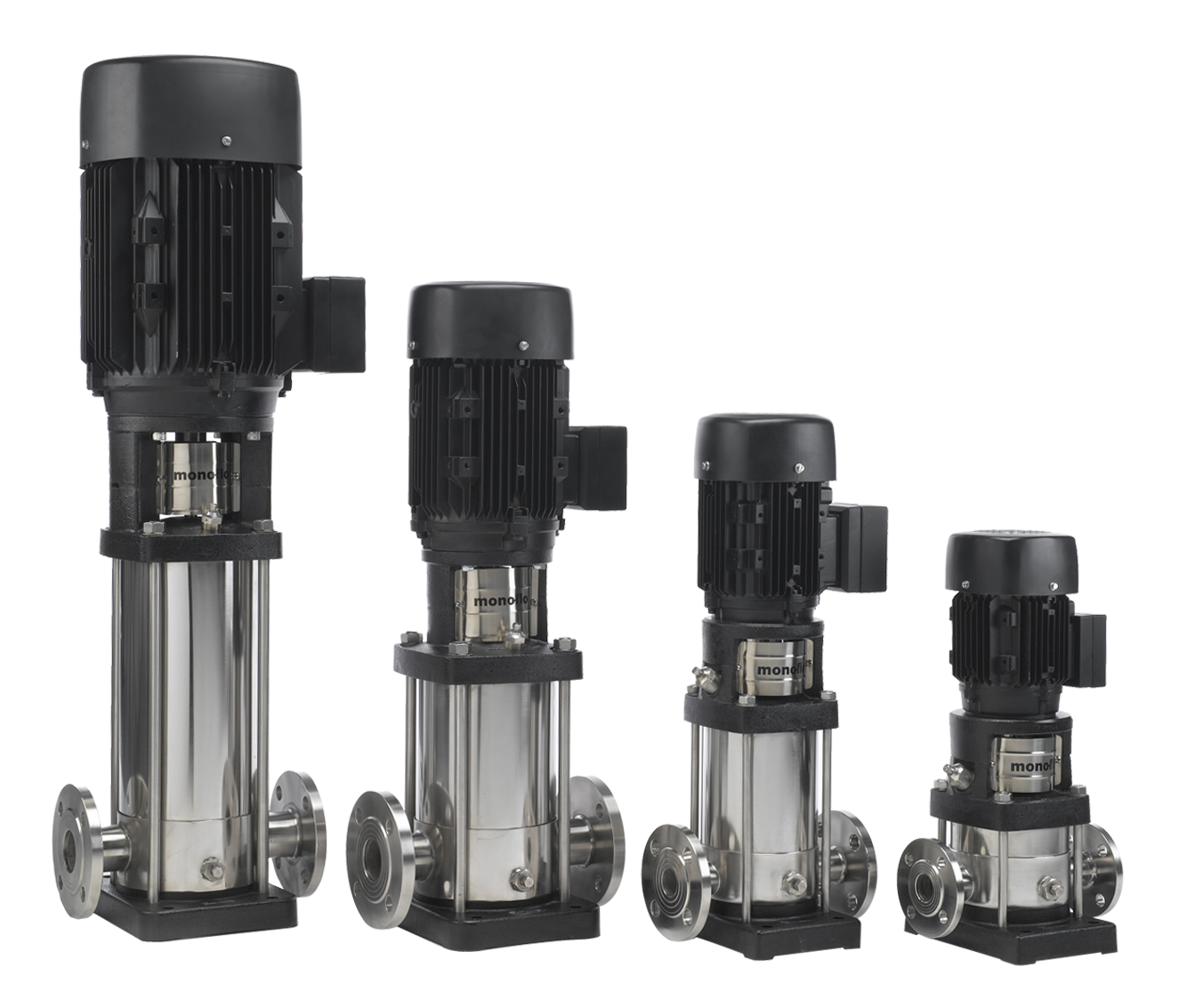

Excellent design features place Monoflo Linear stainless steel vertical multistage in-line pump at a high level of quality and optimum performance.
Understanding today demanding requirements in the pumping applications in building services as well as in the fields of industrial & manufacturing, Linear is designed to fulfill all these.
Linear comprises an extensive range of models with various number of stages to meet flowrates and pressure heads up to 1250 litres/min and 29bars respectively.

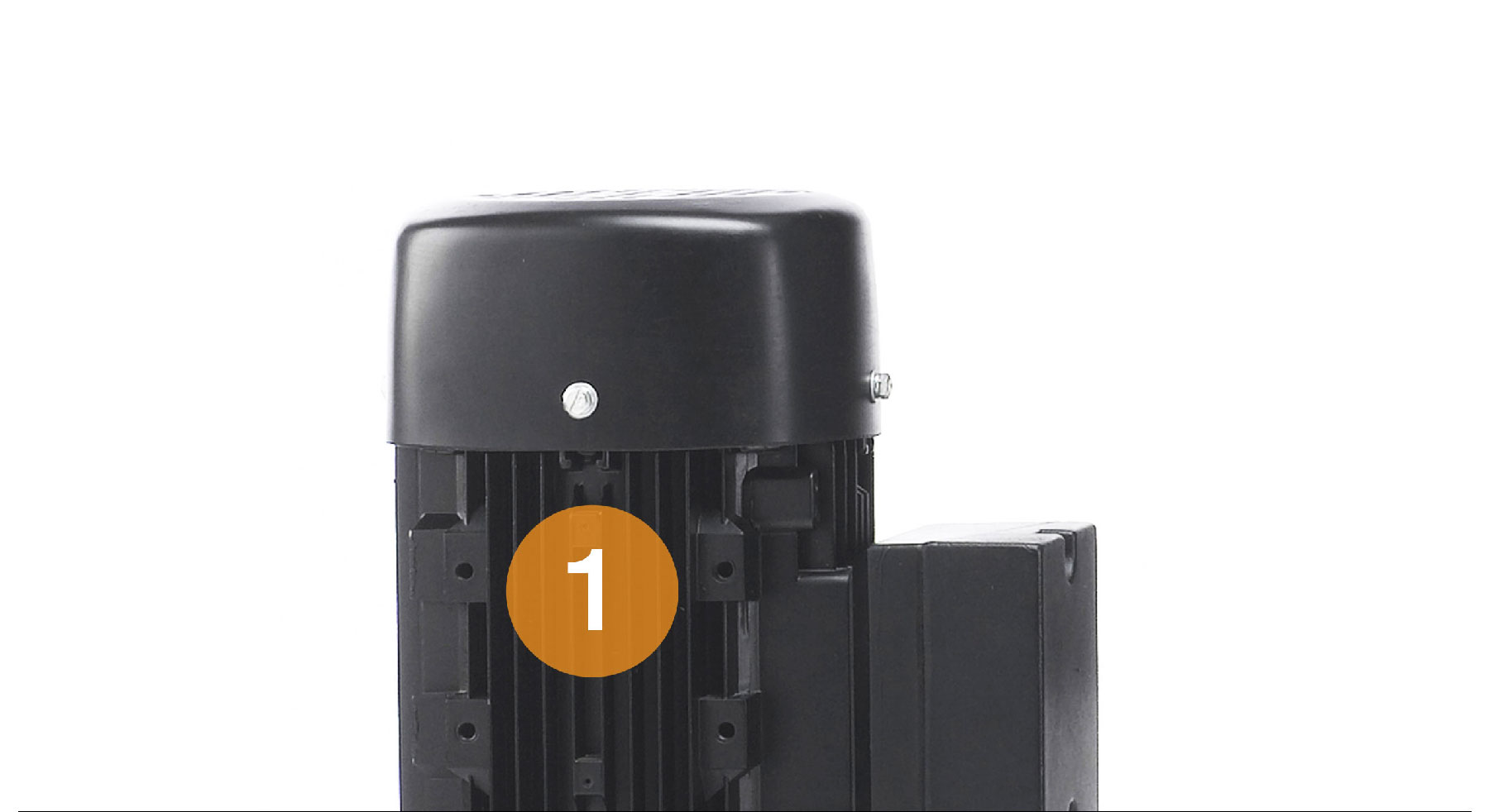

Linear is supplied with IP55 weatherproof rating, IEC standard, aluminium frame, TEFC type electric motors. From 11kW, motor frames shall be of cast iron type.

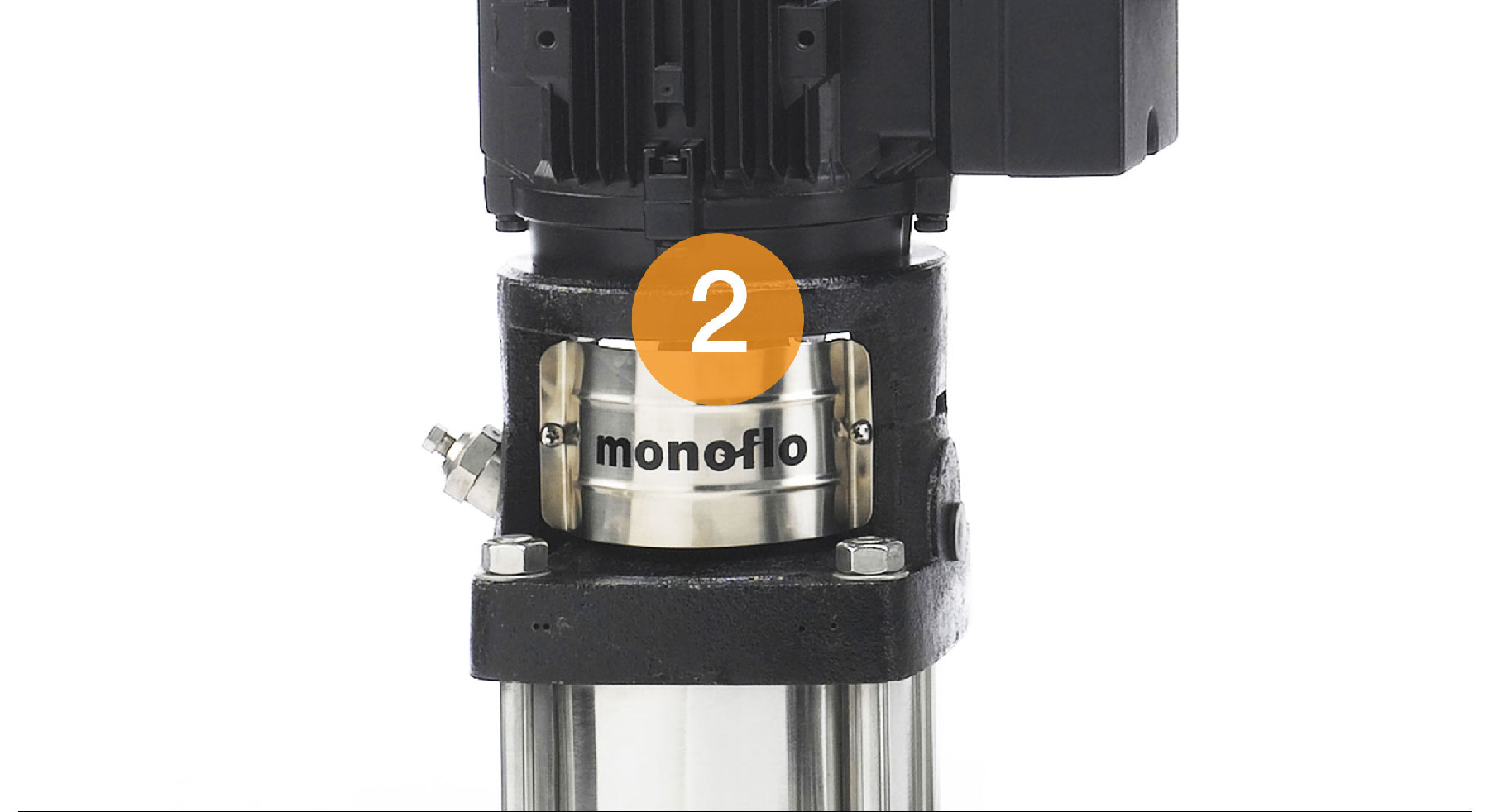

'Safe Guards' are installed as a safety feature to prevent rotating shaft from human reach while in operation.

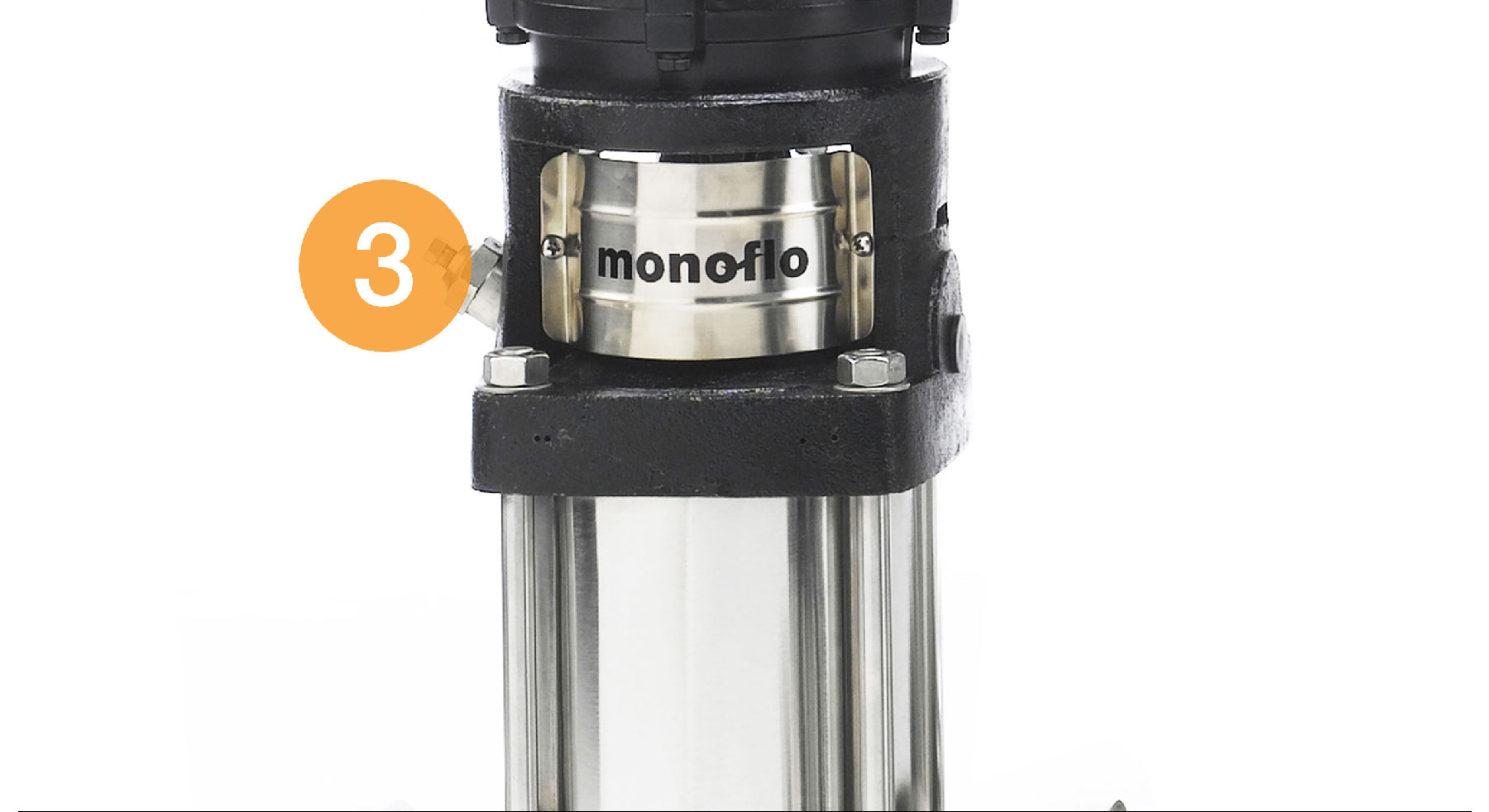

To facilitate the purging of trapped air in the pump.

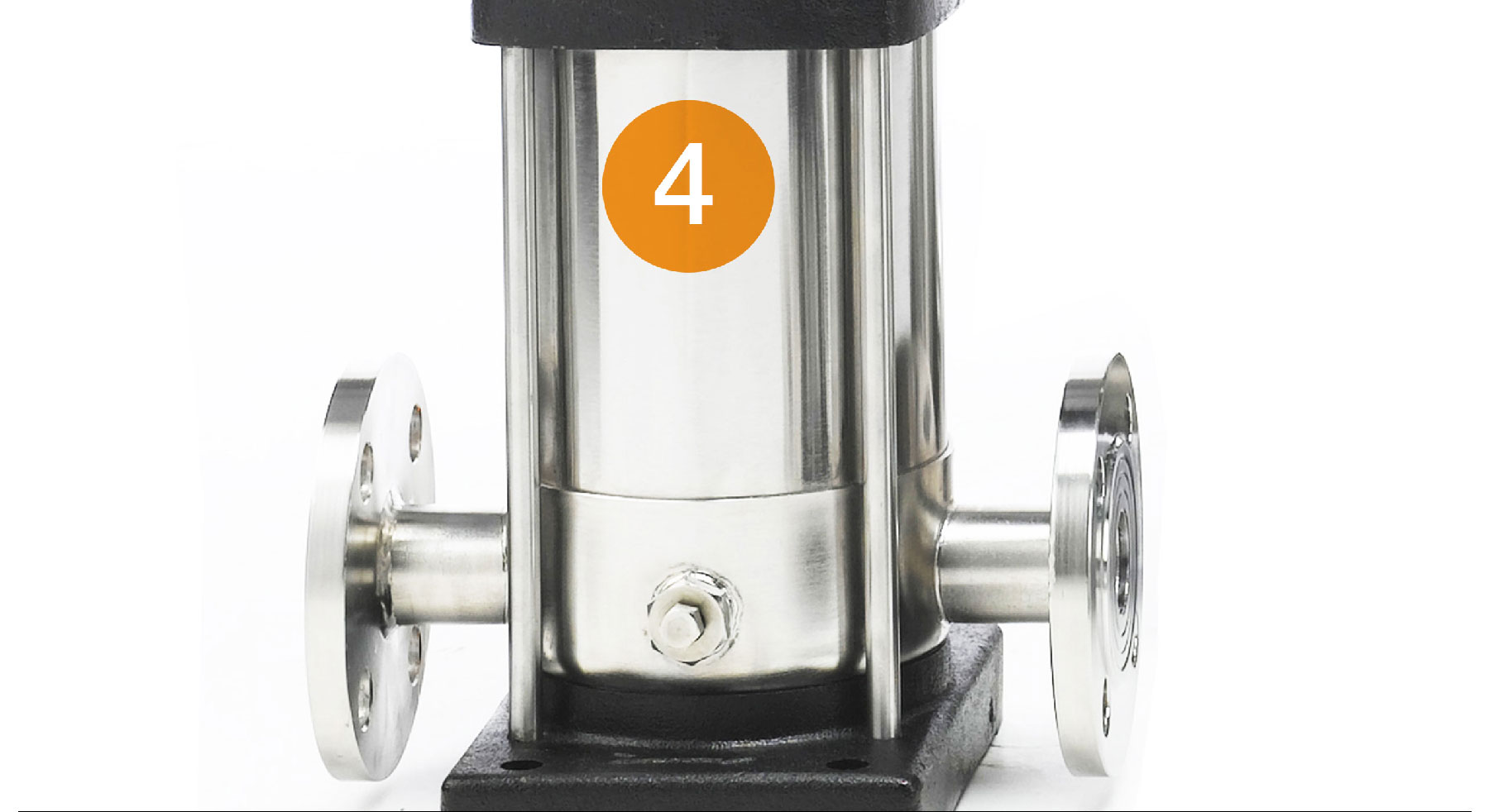

All wetted parts are produced in high quality polished pressed stainless steel, which offers excellent corrosion resistance and increased durability. The smooth uniform surface ensures optimum performance, maintaining high efficiency throughout pump life and lower power consumption, hence lowering operating cost. Depending on the medium to be handled, Gen-x offers two main variance of material of construction. The wetted hydraulic parts of Model GX is constructed in 304 stainess steel. For medium containing slightly more aggressive elements, Model GXF offer SS316-grade construction.

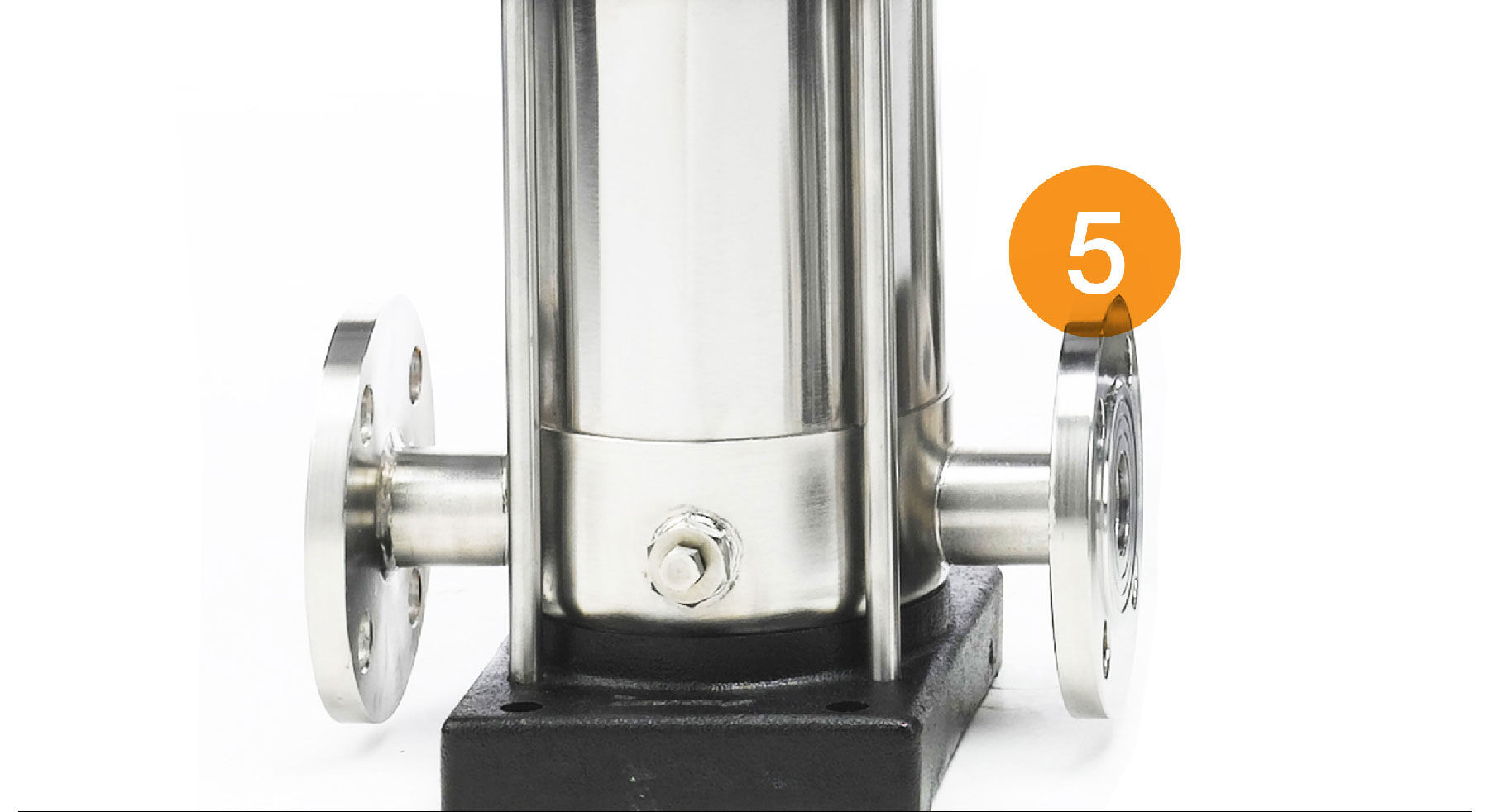

'In-line' suction-discharge ports simplifies installation and pipe layout. Suction & discharge pipes are both fitted to the casing, allowing the pump hydraulics to be maintained without disturbance to the pipework.
Various versions of pipe connections are available. Both models LN & LNS are available in DIN flange connections; and up to LN(S)16, connections can come with either threaded or cutting ferrule type. Flanges in ANSI or JIS standards available as options.

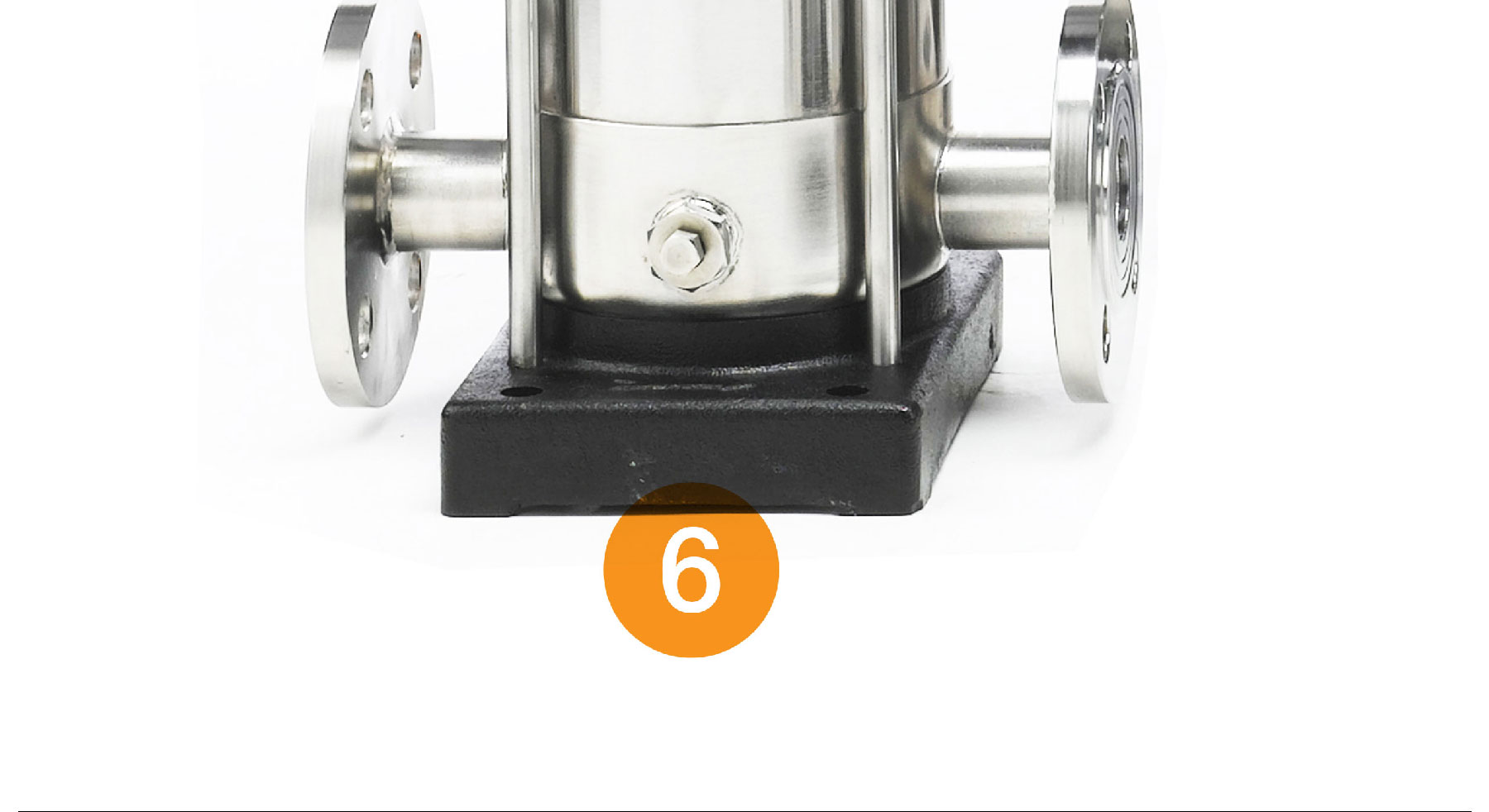

The vertical design of Linear gives the pump a small 'foot-print', hence mounting space is greatly reduced. Ideal where installation space is a constrain.
General water transfer, pressure boosting; chilled & condenser water circulation in central air-conditioning systems; fire hosereel; landscaping & water feature applications.
Water circulation & machine cooling, boiler feed; high pressure washing systems; heat exchanger and other industrial processes.
Water treatment system handling non-aggressive liquid; ultra-filtration systems; reverse osmosis.
Horticultural Irrigation systems; light irrigation from lawns & gardens; sprinkler application.
Clean water or slightly-aggressive liquid compatible to AISI 304/316.
Maximum working pressure up to 30 bar dependence on temperature of fluid handled and the number of impeller stages.
Maximum capacity up to 1,251 litres/min or 75 m3/hr.
Maximum discharge pressure up to 29 bar or 290 metres.
The ambient temperature shall not exceed 40oC. Temperature range of medium pumped, from - 15oC to 120oC.
Nominal operating speed is 2,900 r.p.m. at 50Hz ,and 3,600 r.p.m. at 60Hz.
